Y Solar Connector - Solar Y Branch Parallel Cable 1 to 2 Male Female Adapter, 10AWG 45A Waterproof IP68 40CM Extension Cable for Solar Panels & Solar Cells (MFF & FMM, 1 Pair) - Perfect for RV, Off-Grid & Home Solar System Installations
Free shipping on all orders over $50
7-15 days international
29 people viewing this product right now!
30-day free returns
Secure checkout
40436024
Description
Widely used: 1 to 2 solar Y branch connectors are suitable for parallel connection of 2 solar modules. Widely used in solar power plants, rooftop systems, boats, street lights, mobile homes.Safety: High load capacity with a rated current of 30A. Maximum load 45A, safer and more reliable.Convenience: the Y branch cable is long enough to facilitate the connection. Plug and play, easy to connect and disconnect, not easy to disconnect.Wide Compatibility: the Y type solar cable connector is suitable for most solar plugs on the market, and is compatible with solar cables from 14-10AWG.Product Specifications：Product name: Y shaped solar branch connector.Product type: 1 male to 2 female (M/FF) and 1 female to 2 male (F/MM).Connector length: 40 CMWire gauge: 10 AWGInsulating material: PC/PPORated current: 30 AMaximum load: 45 ARated voltage: DC 1000VTemperature range: -40°C~120°CWaterproof rating: IP 68Contact resistance: ≤ 2.0mΩFire protection class: UL 94-V0Safety class: Class IIScope of supply: 1 pair of Y solar connector 1 to 2 branches (M/FF&F/MM, red+black), with 1 wrench.Please contact us directly if you have any questions, and please make sure it is compatible with your device when you purchase.
Features

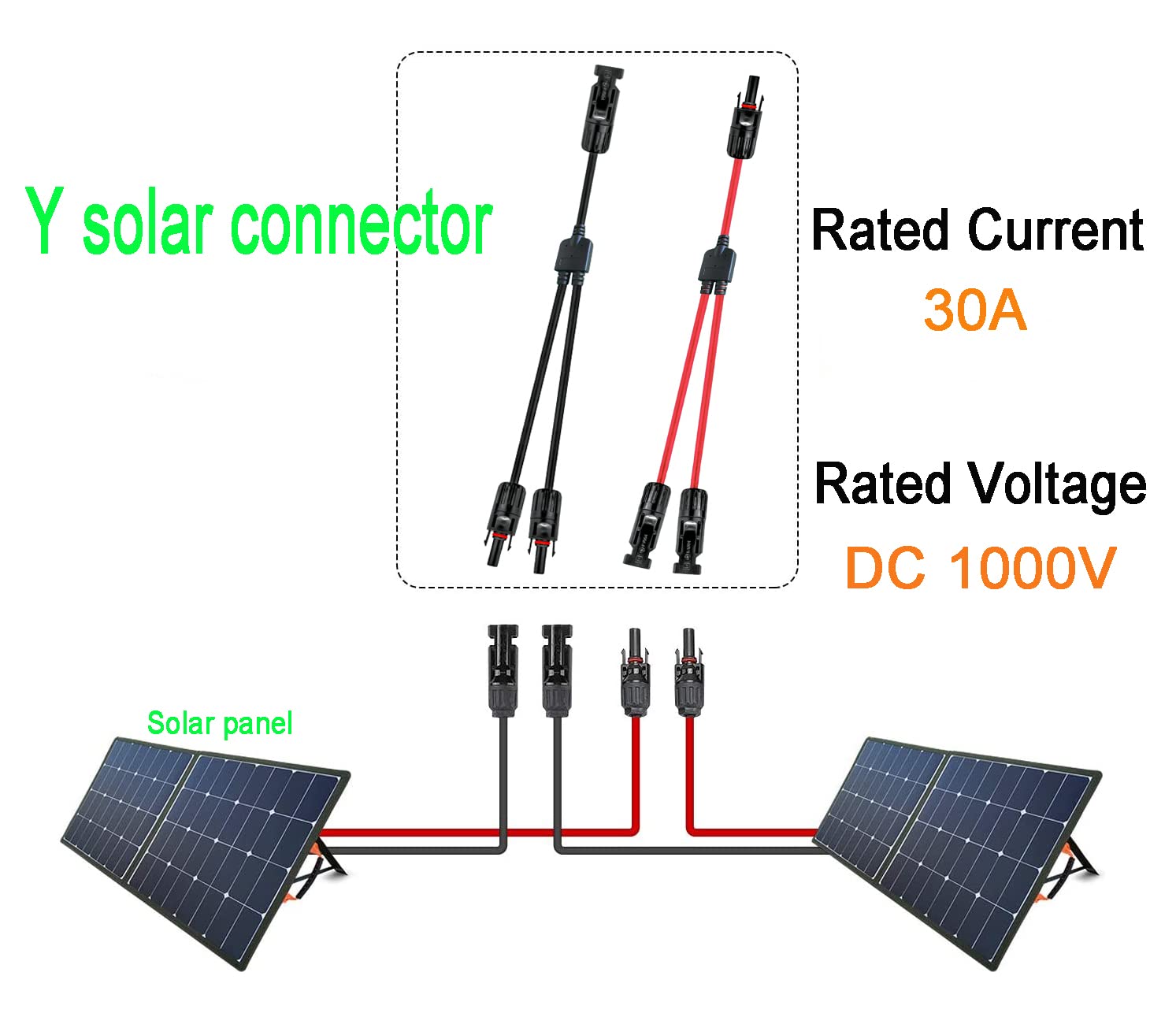

【Y solar branch connector】 1 male to 2 female (M/FF) and 1 female to 2 male (F/MM) (1 pair，red+black). Allows you to quickly connect 2 solar panel branches in parallel.

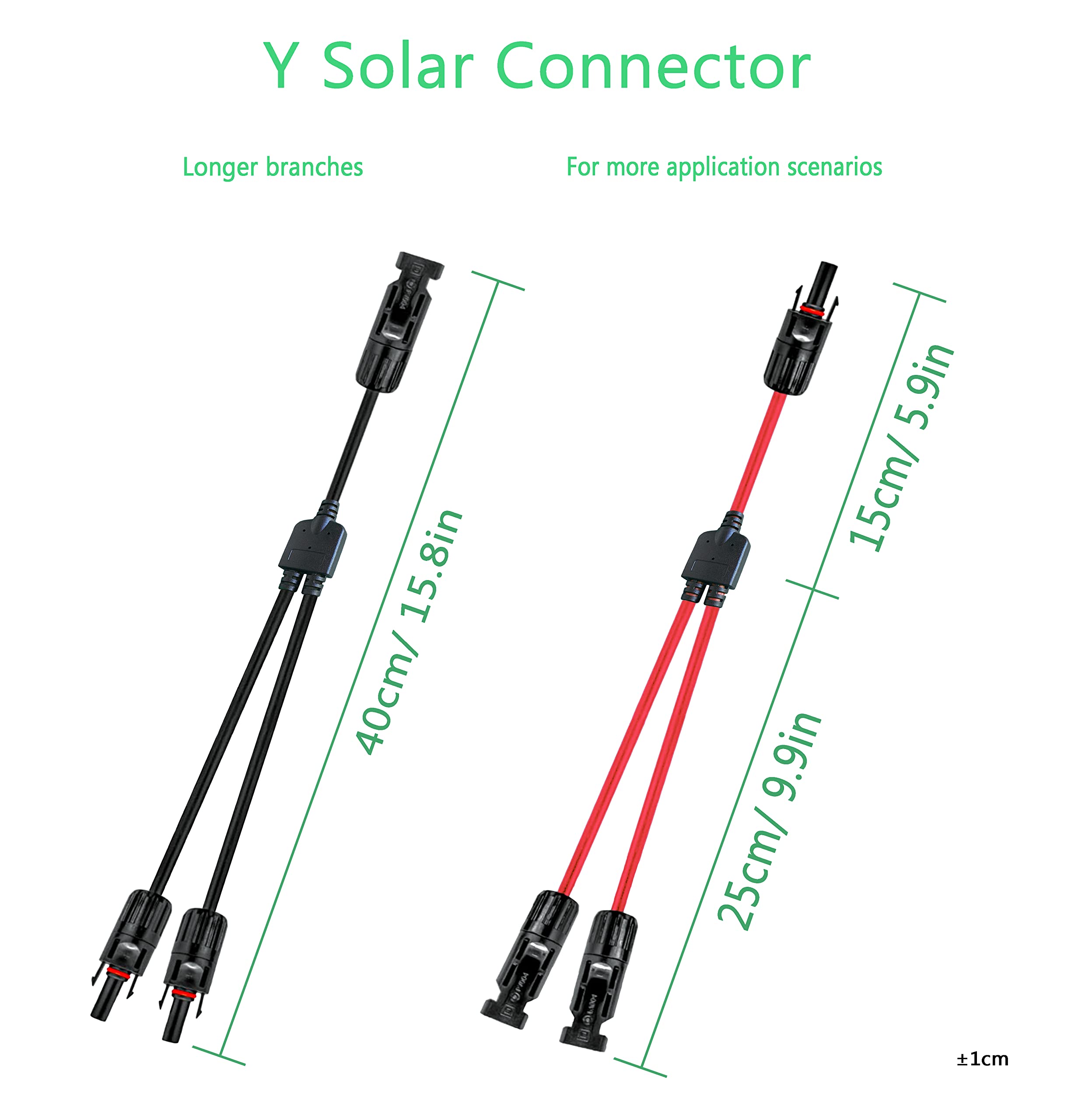

【Specifications of Y Solar Connector】Solar connector cable wire gauge 10AWG, full length of connector 40cm. Rated current 30A, maximum current 45A, rated voltage DC1000V.

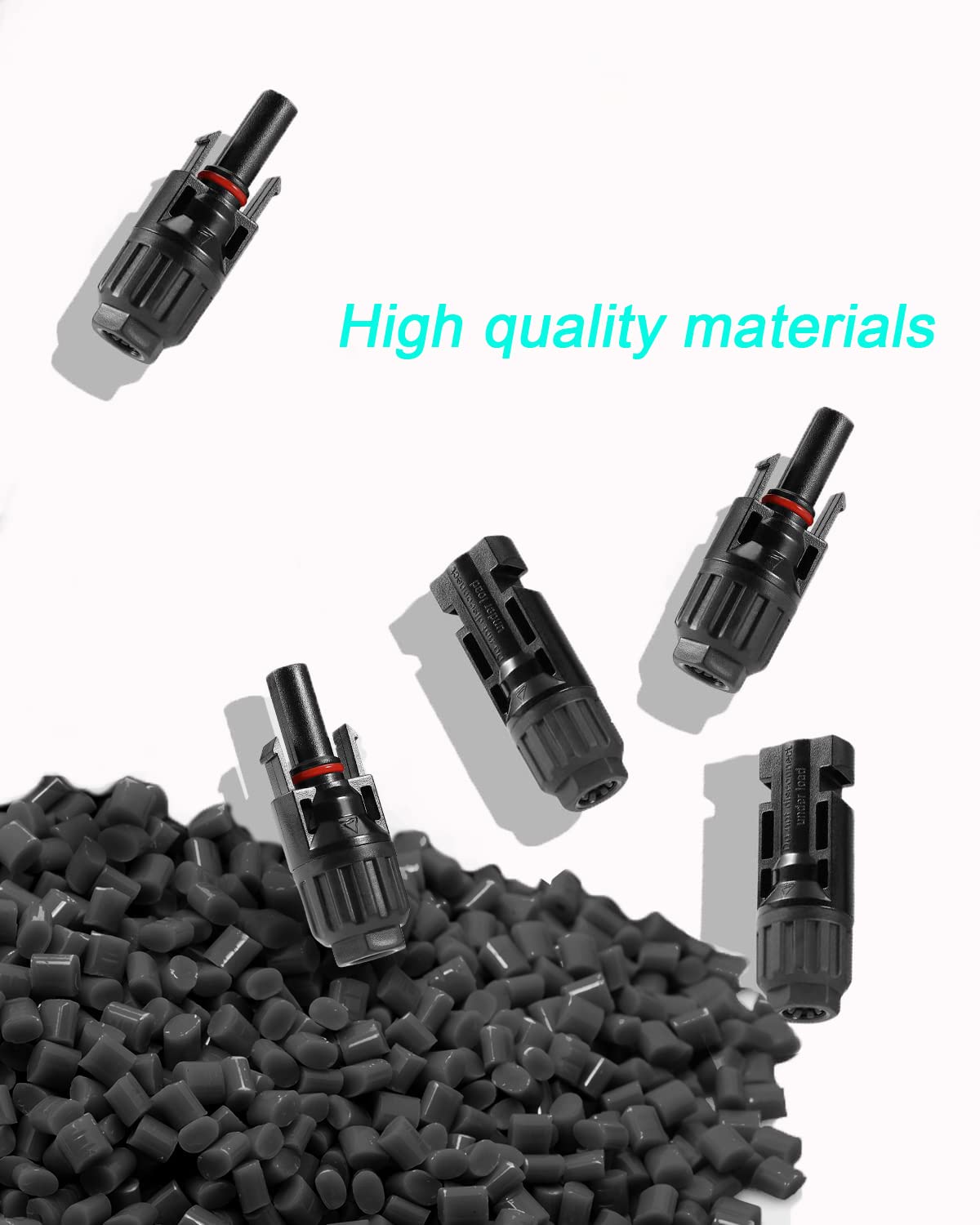

【Widespread】：The Y solar plug connector is compatible with various solar cables. Using high quality PC and PPO materials, which are resistant to oxidation, UV and temperature.
【Waterproof performance】：Waterproof class IP68, plug with waterproof ring, waterproof and dustproof. Can be used in outdoor environment.
【Plug and Play】Can be installed quickly and easily with the solar Y connector. Disconnecting is simply by pressing the built-in latch on the connector. Easy, fast and safe connection.

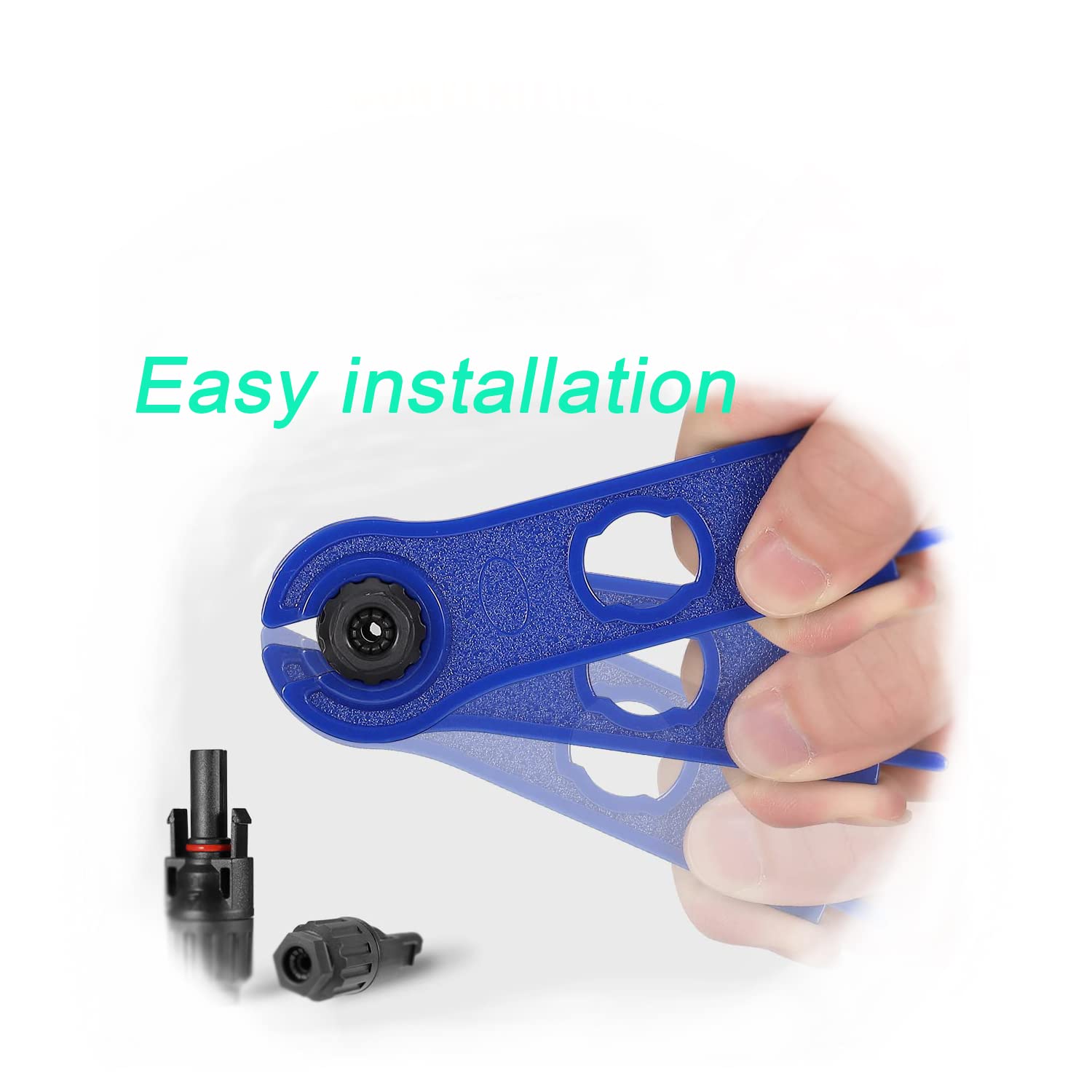

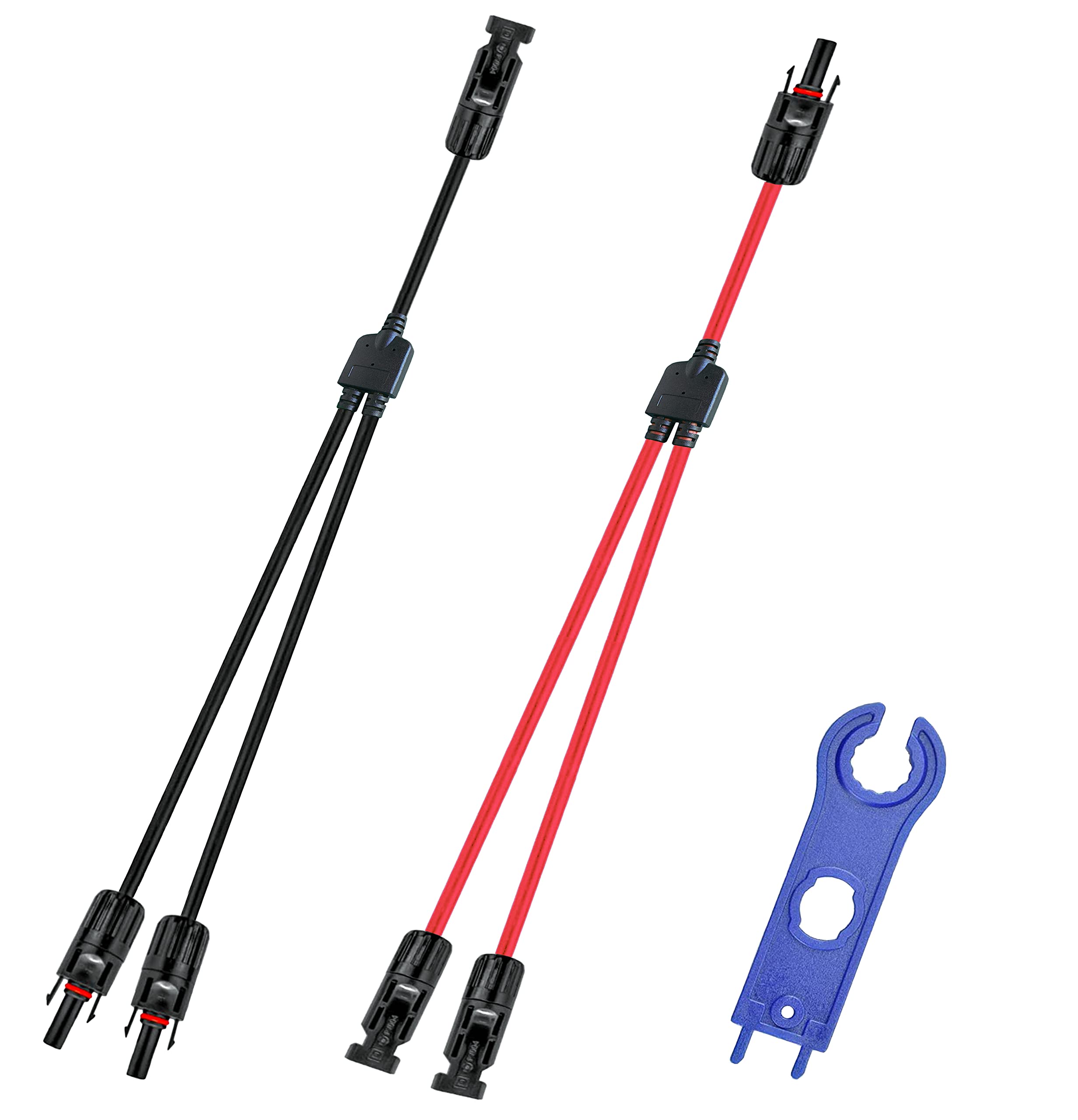

【Included Package】 1 pair of Y solar connector 1 to 2 branches (M/FF&F/MM，red+black), Comes with 1 wrench.
【Tip】 Due to long distance transportation plug nut will be loose. Please check the looseness when you receive the goods, if so please tighten it by yourself before use!
Please contact us directly if you have any questions, and please make sure it is compatible with your device when you purchase.
