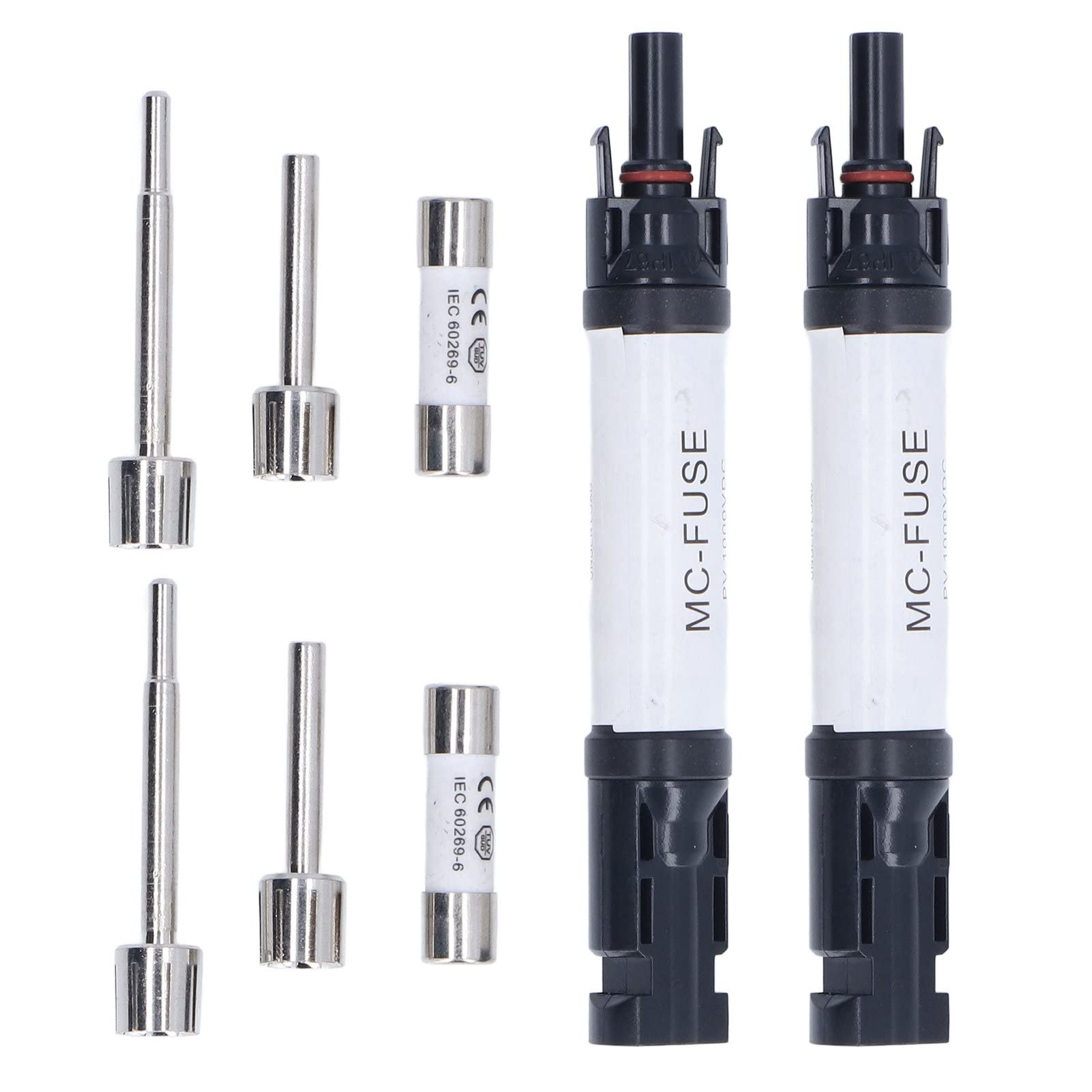

Haofy Solar PV Connectors Set - IP68 Waterproof & UV Resistant 1000V Solar Panel Connectors with Built-in Fuse (20A, 2 Sets) - Perfect for Solar Cables, Controllers & Off-Grid Power Systems
Free shipping on all orders over $50
7-15 days international
19 people viewing this product right now!
30-day free returns
Secure checkout
61646540
Description
How to Use: Easily plug and unplug by pressing both sides of the built‑in lock on the connector with your fingers. Specification: Item Type: Solar PV Connectors Set Material: PPO Plastic Body, Copper Tin Plated Hardware, PV Special Fuse Specifications (rated Current): 10A 15A 20A 30A Model: MC -20F Rated Voltage: 1000V Absolute Green Material: PPO Material Conductor Material: Copper Tinned Ambient Temperature: -40℃~+90℃ Product Temperature Resistance: -40℃~+135℃ Security Level: DCII Waterproof Grade: IP68 Contact Resistance: ≤0.35mΩ Connection System: Multi Point Connection Self Locking System: Embedded Pull out Force: ≥50N Insertion Force: ≤50N Resistance Level: Ul94 VO Scope of Application: Solar Panel Connection Weight: Approx. 168g / 5.9oz Package List: 2 x Solar PV Connectors Set(8 Loose Parts)
Features
【IP68 Waterproof】- The solar PV connectors set has good water resistance, and the waterproof level reaches IP68.
【Anti UV】- 1000V solar PV connectors have excellent anti aging and anti UV ability, very durable.
【Easy to Plug Unplug】- The Waterproof Solar Fuse Connector is easy to plug and unplug and compatible with solar photovoltaic connectors.
【Ease of Use】- Solar panel PV connector easily plugs and unplugs by pressing both sides of the built in lock on the connector with your fingers.
【Scope of Application】- Solar PV connectors are suitable for solar panels, solar cables, solar controllers, etc.
