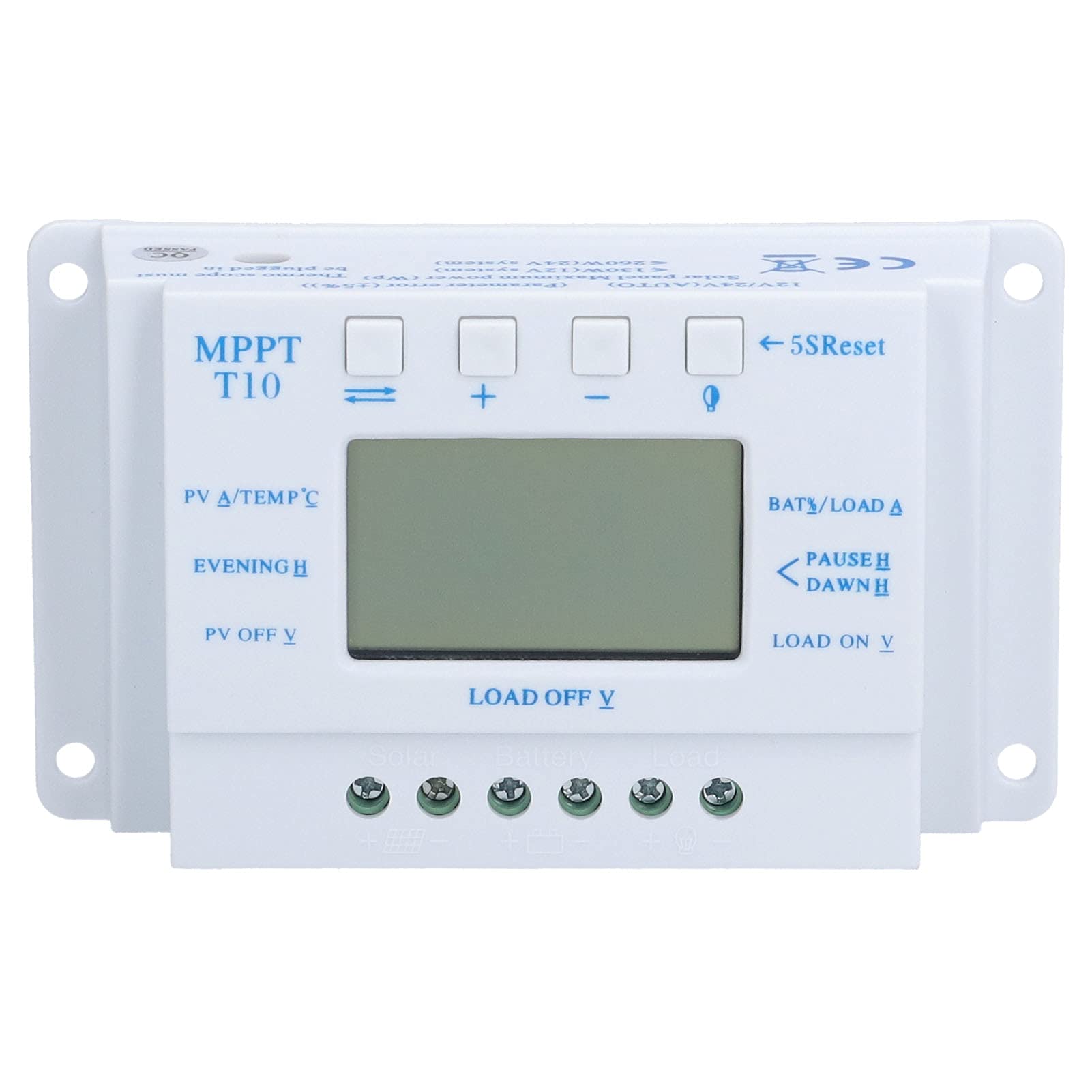

12V/24V 10A MPPT PWM Solar Charge Controller with LCD Display - Automatic Solar Regulator for RV, Boat, Off-Grid & Home Solar Systems
Free shipping on all orders over $50
7-15 days international
27 people viewing this product right now!
30-day free returns
Secure checkout
82012586
Description
Specification: Item Type: Solar Energy Controller Material: ABS Weight: Approx. 225g / 7.9oz Product Size: Approx. 142x85x37mm / 5.6x3.3x1.5in Rated Working Voltage: 12V/24V Rated Open Circuit Voltage of Solar Panel: 8V/36V Battery Float Voltage: 13.8V/27.6V Battery Undervoltage Protection: 10.6V/21.2V Battery Undervoltage Recovery Working Voltage: 12.6V/25.2V Maximum Open Circuit Voltage of Solar Panel: ≤48V System No Load Loss: ≤13mA Loop Voltage Reduction: ≤100mV Charging Mode: PWM Working Temperature: -10℃-60℃ Storage Temperature: -30℃-70℃ Humidity Requirements: ≤90% Non Condensing Temperature Compensation: -4mV/Cel1/℃ Temperature Probe Material: NTC100K Thermistor How to Use: It can be used under sunlight. Package List: 1 x Controller 1 x Probe 1 x English Manual Note: 1. Please allow 0‑1 inch error due to manual measurement. Thanks for your understanding. 2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard. 3. The product does not have a power storage function.
Features
SUITABLE FOR: This solar energy controller compatible with MPPT PWM solar charging control, automatic tracking of the maximum power point, 10%‑30% higher than ordinary controller charging efficiency, standby power consumption is only 10mA‑15MA.
LCD SCREEN DISPLAYS: This solar energy controller equipped with LCD display, real‑time display of solar panels and battery performance, and energy statistics counter, adjustable charge and discharge settings.
SETTING DIFFERENT WORKING HOURS: Users can set different working hours according to their needs. Divided into the evening work period, the intermediate rest or pause period, and the dawn (morning function) work period.
ENERGY SAVING: The solar controller adopts advanced PWM technology and has a full set of electronic safety functions, which can achieve the best solar energy system performance, safety and energy saving.
CONVENIENT TO USE: With NTC100K thermistor temperature probe, compatible with 12V 24V system, with multiple protections, easy to install, without power storage function. The solar energy controller size is approx. 142x85x37mm / 5.6x3.3x1.5in
