Solar Y Connector 10AWG 45A IP68 Waterproof - 1 to 3 Male Female Parallel Adapter Cable for Solar Panels & Cells (40CM, MFFF&FMMM Pair) - Ideal for RV, Off-Grid & Home Solar System Connections
Free shipping on all orders over $50
7-15 days international
17 people viewing this product right now!
30-day free returns
Secure checkout
84963430
Description
Widely used: 1 to 3 solar Y-branch connectors are suitable for parallel connection of 3 solar modules. Widely used in solar power plants, rooftop systems, boats, street lights, mobile homes.Safe: High load capacity with rated current of 30A. maximum load of 45A, safer and more reliable.Convenient: Y type branch cable is long enough for easy connection. Plug and play, easy to connect and disconnect, not easy to break the wire.Wide compatibility: Y-type solar cable connector is suitable for most solar plugs in the market, compatible with 14-10AWG solar cables.Product specification:Product name: Y type solar branch connector.Product Type: 1 male to 3 female (M/FFF) and 1 female to 3 male (F/MMM).Connector Length: 40CMWire size: 10 AWGInsulation material: PC/PPORated current: 30 AMaximum load: 45 ARated voltage: DC 1000VTemperature range: -40℃~120℃Waterproof rating: IP 68Contact resistance: ≤2.0mΩFire rating: UL 94-V0Safety class: Class IIScope of supply: 1 pair of Y type solar connectors 1 to 3 branch (M/FFF&F/MMM, red+black) with 1 wrench.If you have any questions, please contact us directly and make sure it is compatible with your equipment when you purchase.
Features

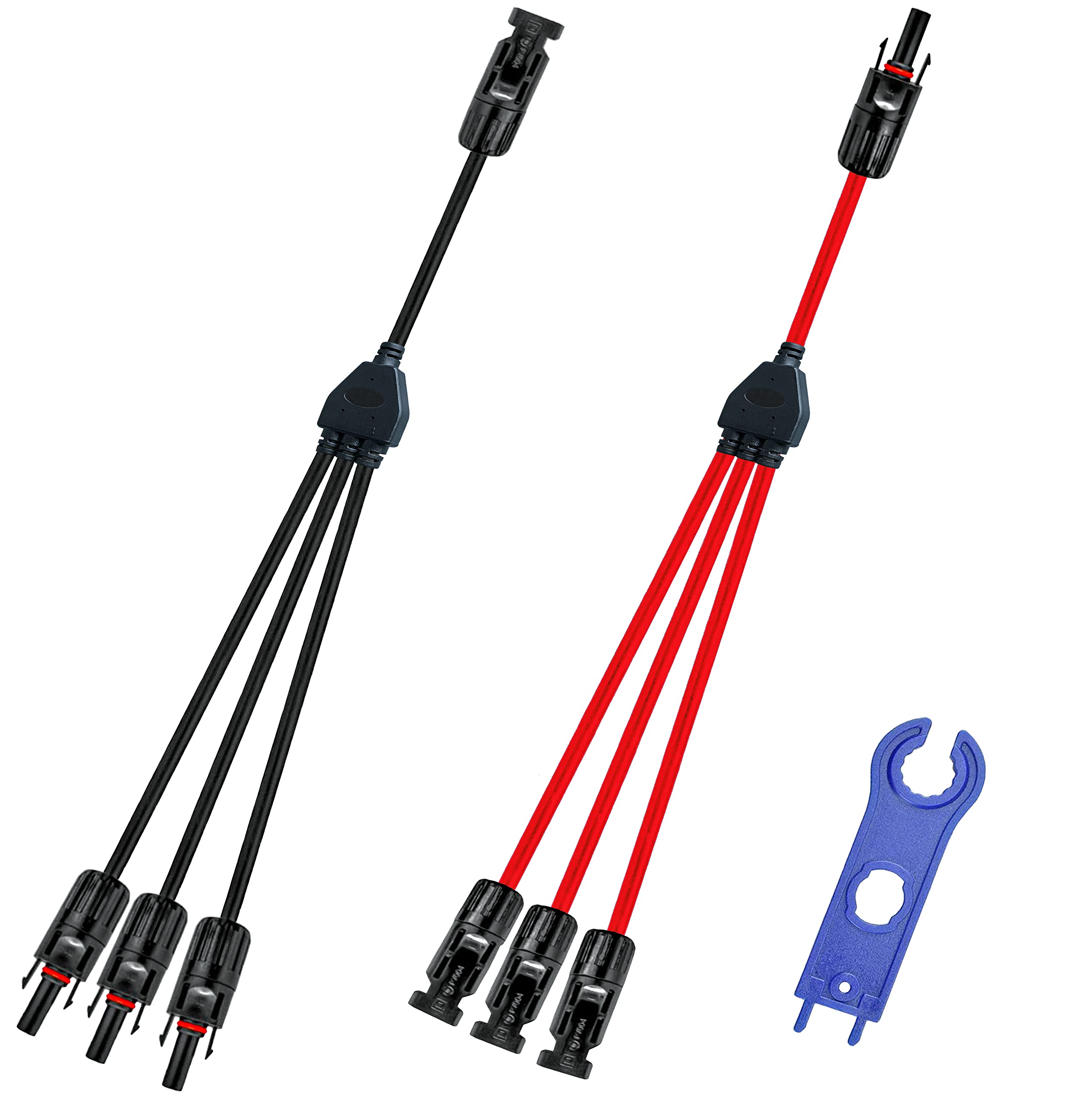

【Y solar branch connector】 1 male to 3 female (M/FFF) and 1 female to 3 male (F/MMM) (1 pair，red+black). Allows you to quickly connect 3 solar panel branches in parallel.

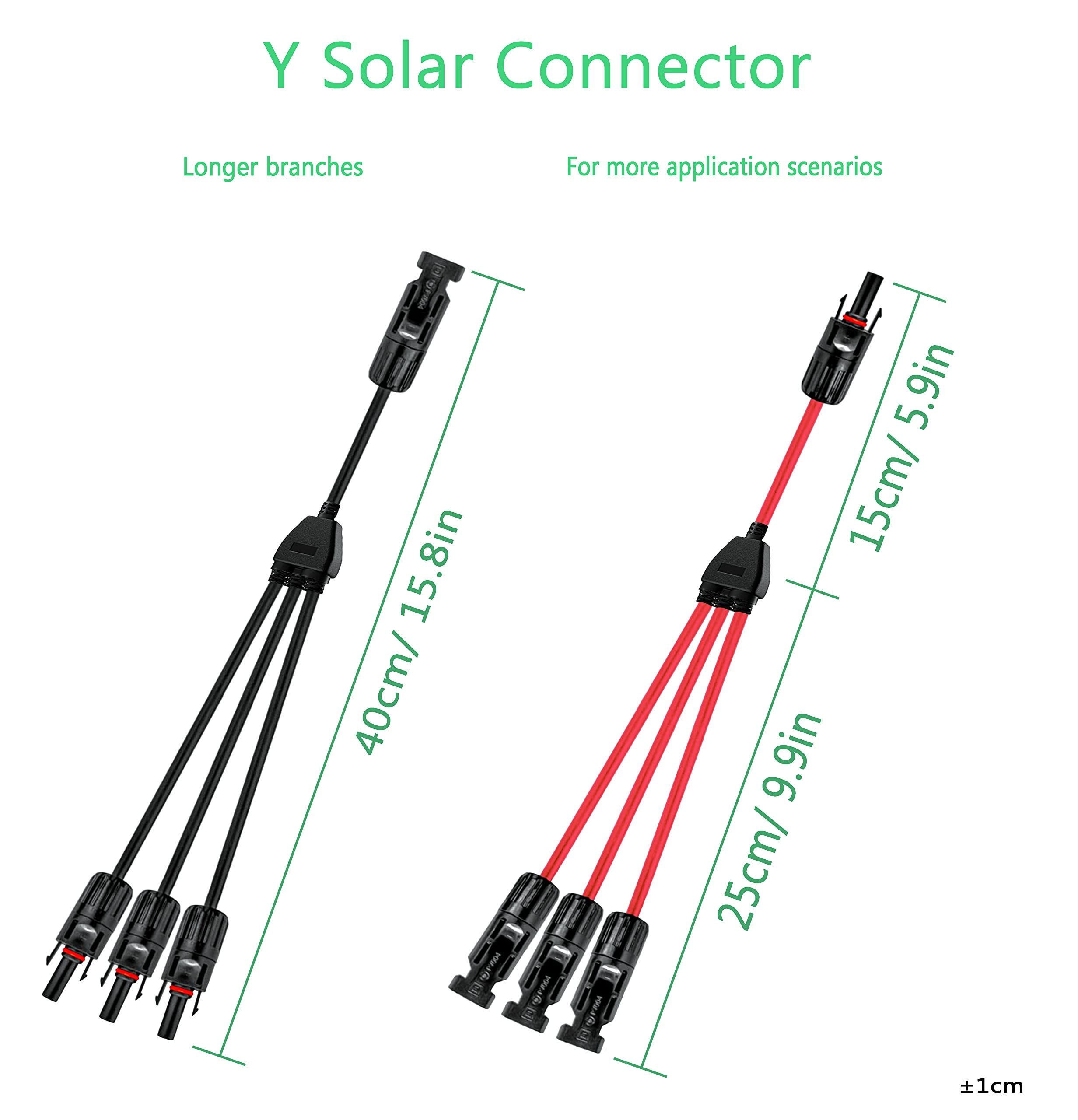

【Specifications of Y Solar Connector】Solar connector cable wire gauge 10AWG, full length of connector 40cm. Rated current 30A, maximum current 45A, rated voltage DC1000V.

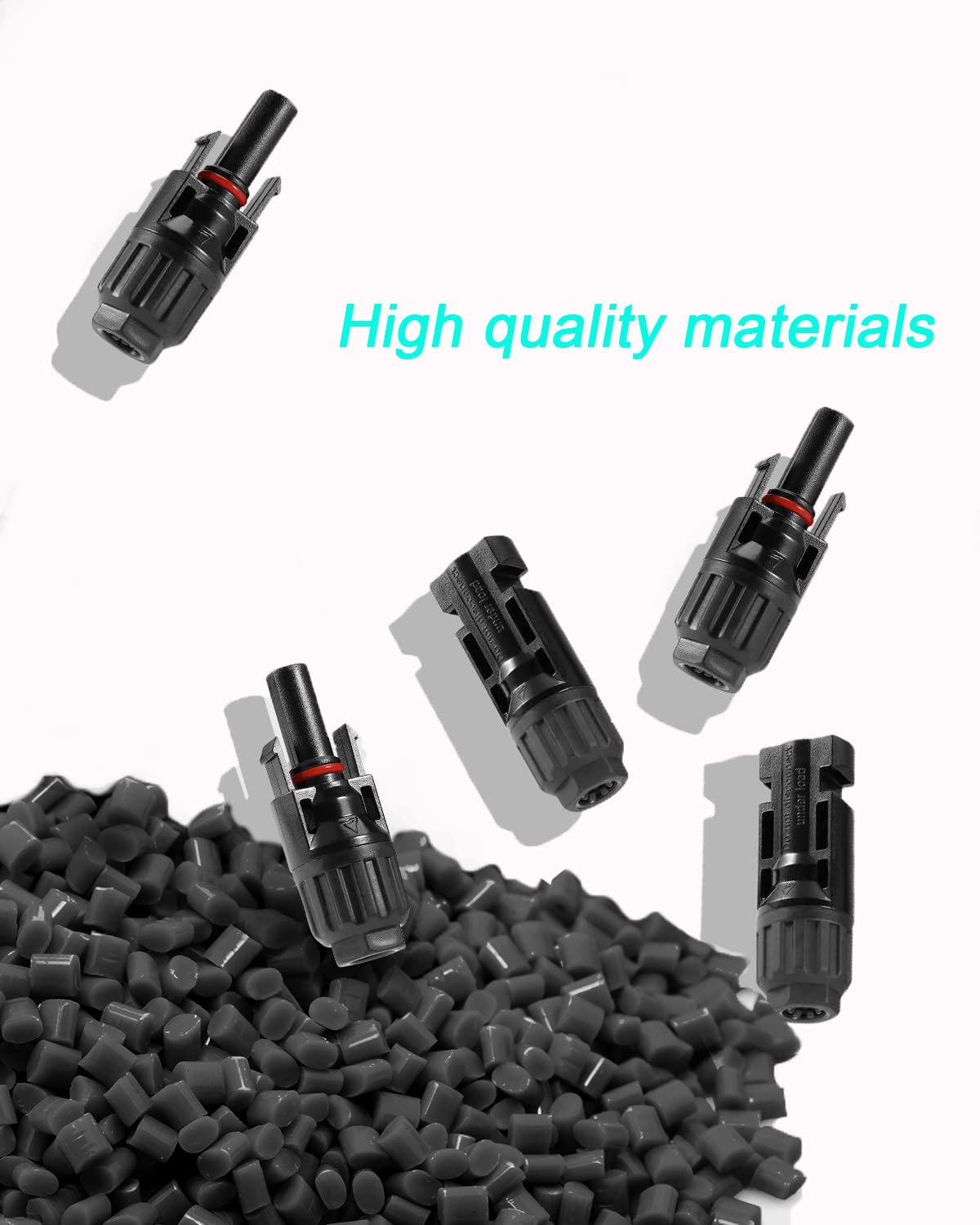

【Widespread】：The Y solar plug connector is compatible with various solar cables. Using high quality PC and PPO materials, which are resistant to oxidation, UV and temperature.
【Waterproof performance】：Waterproof class IP68, plug with waterproof ring, waterproof and dustproof. Can be used in outdoor environment.

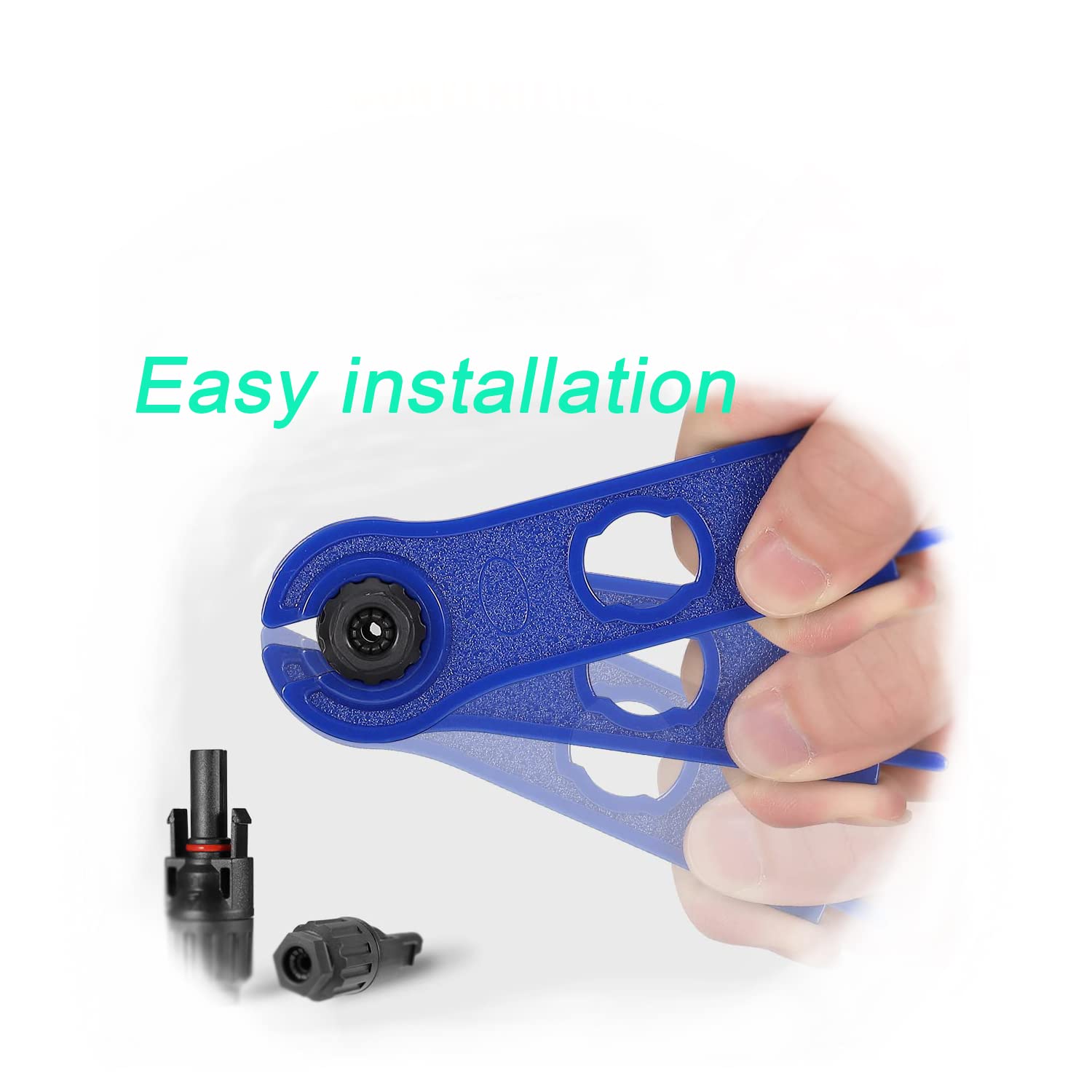

【Plug and Play】Can be installed quickly and easily with the solar Y connector. Disconnecting is simply by pressing the built-in latch on the connector. Easy, fast and safe connection.
【Included Package】 1 pair of Y solar connector 1 to 3 branches (M/FFF&F/MMM，red+black), Comes with 1 wrench.
【Tip】 Due to long distance transportation plug nut will be loose. Please check the looseness when you receive the goods, if so please tighten it by yourself before use!
Please contact us directly if you have any questions, and please make sure it is compatible with your device when you purchase.
